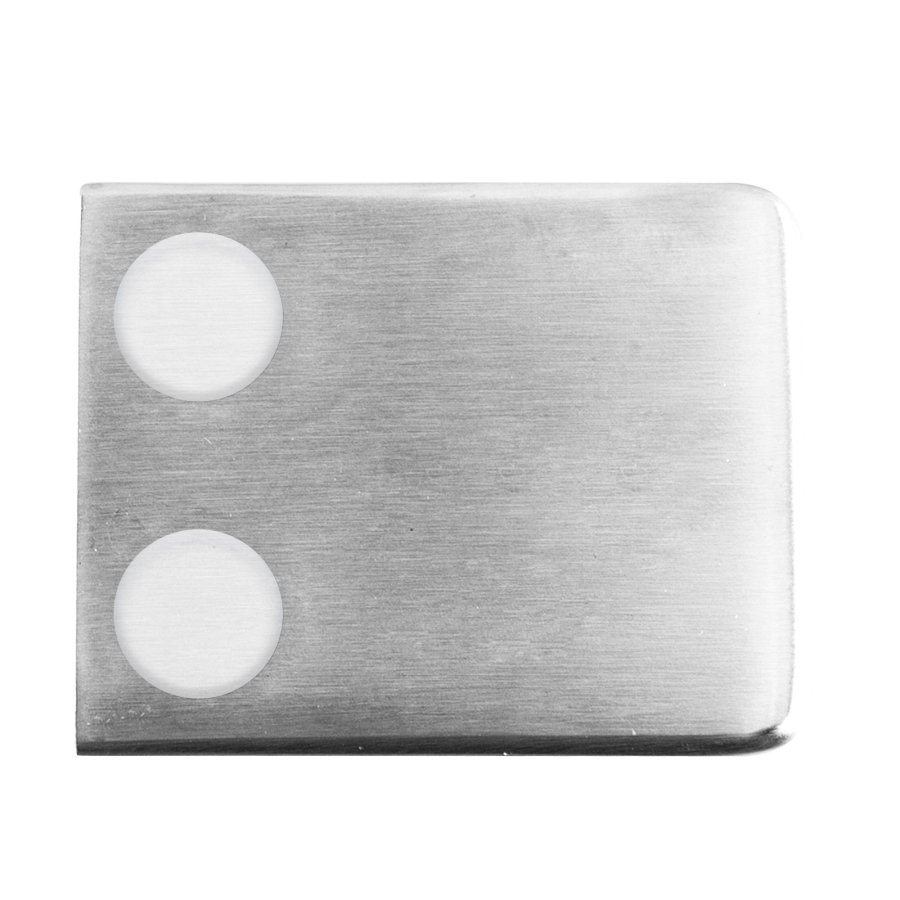

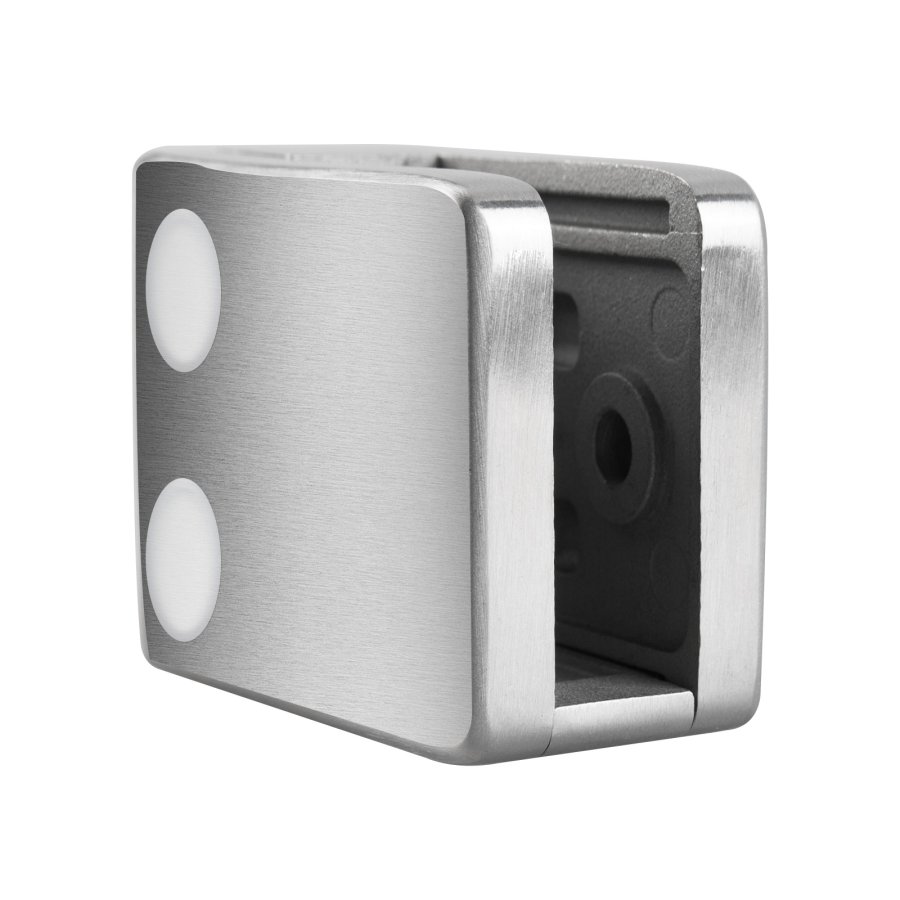

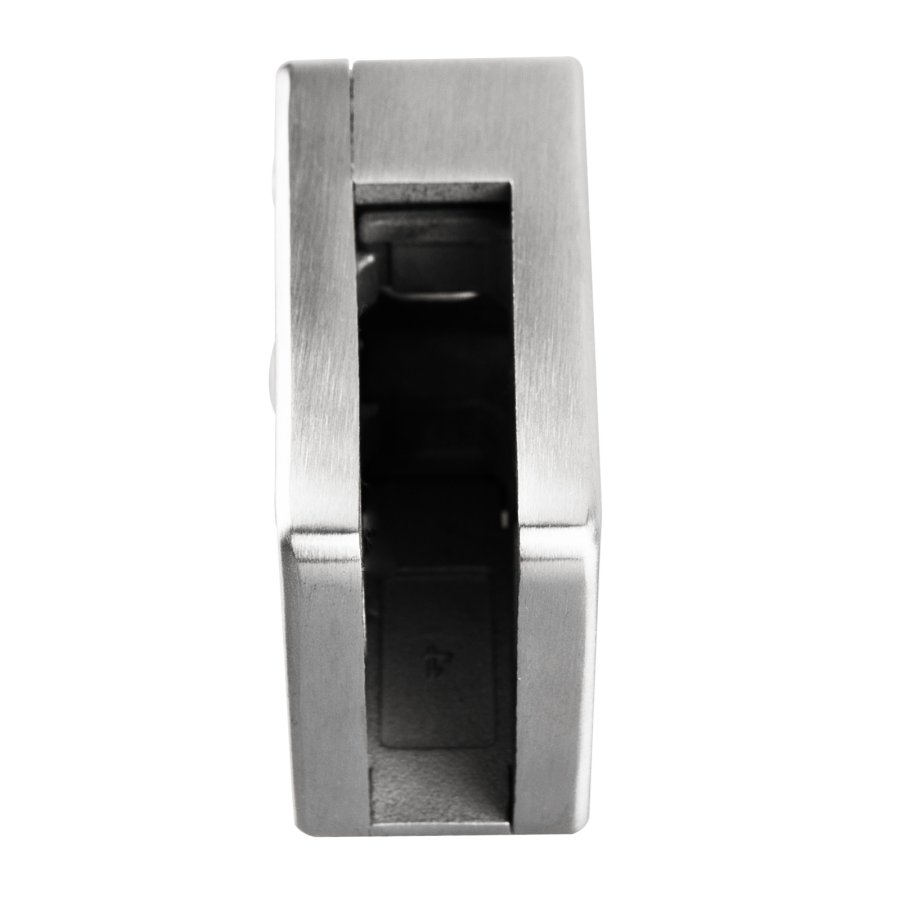

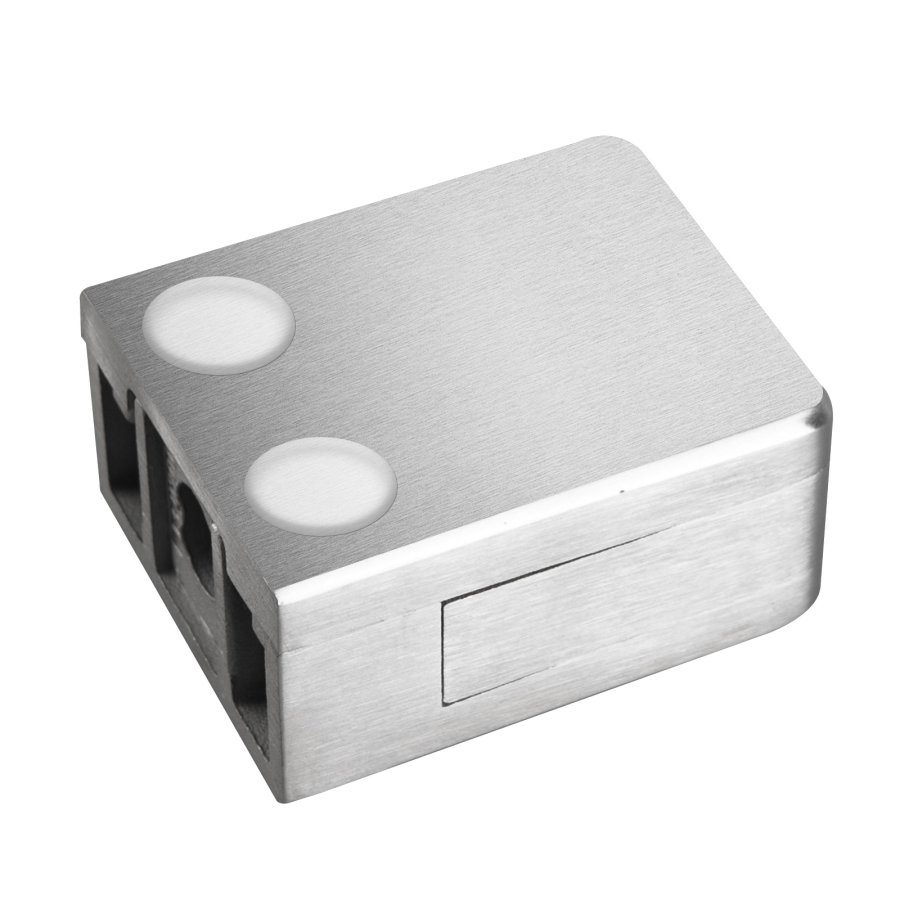

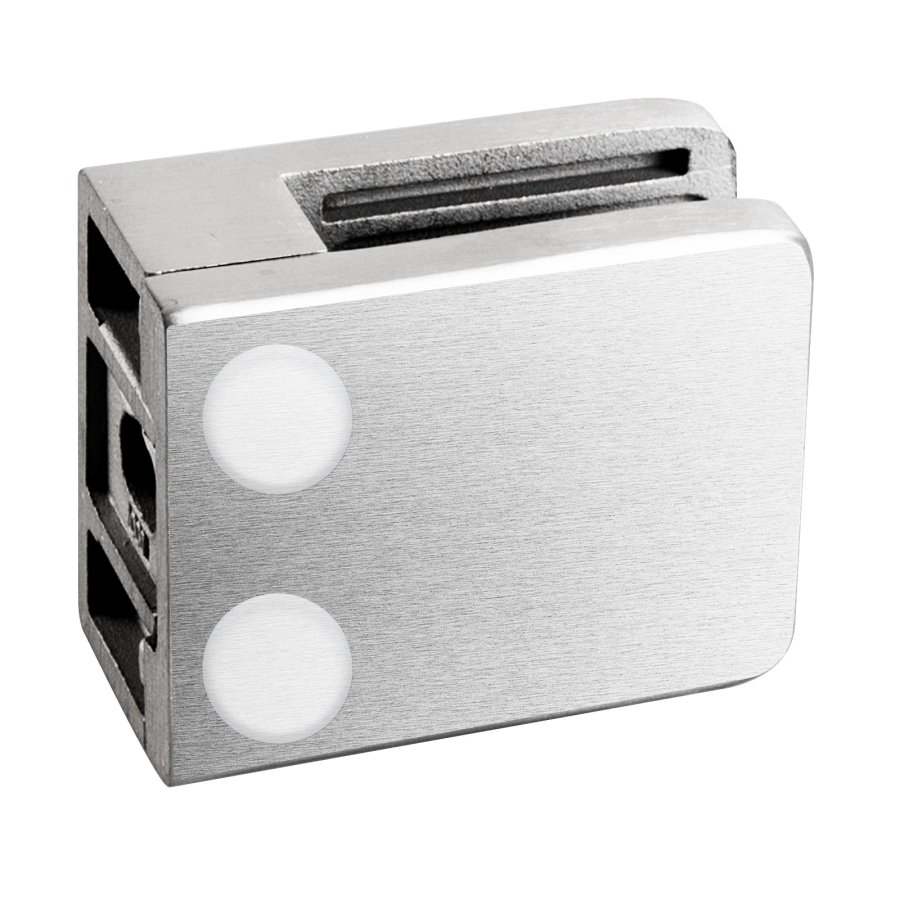

Premium Square Glass Clamp-MOD 1209-Flat for Secure Glass Panel Installation

Specifications

Description

1. The square glass clamp is designed as a support for fixing glass panels. With strong load-bearing capacity, it can be well fixed, ensuring the stability and safety of your glass railing. It offers a robust and reliable solution for glass mounting. It's easy to install and remove. No welding required-just gluing, drilling and tapping. The dimension of the clamp is 57*28*45mm. It can be suitable for square pipe.

2. Made of high quality 304/316/2205 stainless steel. 304 Stainless Steel: High-quality, corrosion-resistant stainless steel, ideal for indoor use and general exterior applications. 316 Stainless Steel: Premium grade stainless steel with enhanced resistance to corrosion, especially suitable for marine environments or harsh outdoor conditions. 2205 Stainless Steel: A duplex stainless steel offering superior strength and resistance to corrosion, especially in more challenging environments like coastal areas.

3. The surface treatment can be mirror polished and satin brushed. Satin brushed finish looks more elegant and adds a sleek and modern aesthetic style to any railing system. Mirror polished finish offers a highly reflective, mirror-like surface that creates a stunning visual effect. Powder coating is also available.

4. One package unit includes 4 pieces of glass clamps, 8 M6*16 screws, 4 M8*20 screws, 8 rubber gaskets, 8 plastic cover caps for lateral screws (diameter 13.5mm and height 5.1 mm). To fit glasses of various thickness, we provide rubber inlays (made of high quality rubber) in 4 sizes, namely 1/4 (6mm), 5/16 (8mm), 3/8 (10mm), 1/2 (12mm) and 4 security pins (length 22mm and diameter 6 mm ). You can use suitable rubber inlays to load glasses of different thicknesses by adjusting screws.
